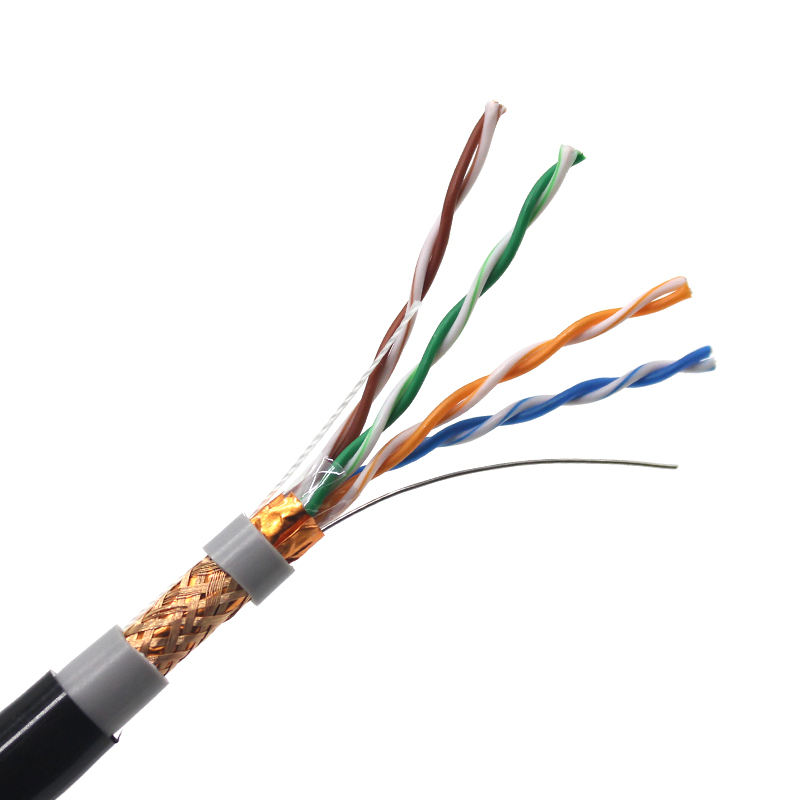

Outdoor Cat5e SFTP PVC+PE
Description
| Item | Outdoor Cat5e SFTP PVC+PE double jacket |
| Type | SFTP |
| Pair | 4 pairs |
| Conductor Material | CCA / CCAU / 99.99% COPPER |
| Conductor AWG | 24AWG |
| Insulation | HDPE |
| Insulation OD | 0.92mm |
| Insulation Resistance | 10000 M Ohm.km at 20℃ |
| Filling | Rip cord |
| Drain wire | CCA |
| Mylar | Polyester film |
| Shield 1 | Aluminum foil |
| Shield 2 | Al braiding / CCA braiding / Copper braiding |
| Inner jacket | PVC |
| Outer Jacket | PE |
| Jacket color | Customized |
| DC Resistance Imbalance | 2.50% |
| Length | 305m/wooden spool, 500m/wooden spool |
| Marking On Jacket | As your request |
| Standards | ISO/IEC 11801, ANSI/TIA/EIA-568B |
| Certification | CE / Rohs / ISO |
| Operating Temperature | -40°C – +75°C |
| MOQ | 100pcs |
| OEM/ODM | Available |
